FM800 Super Mini FASST Compatible 8ch Receiver with SBUS/CPPM


Here's some awesome news for Futaba radio users!
The FM800 is the smallest and lightest FASST compatible receiver on the market today weighing only 2g.  The FM800 2.4GHz FASST compatible receiver is designed to work with FUTABA FASST 2.4GHz transmitters and is compatible with Futabas LBT protocol.
It can output 8ch Sbus and 8ch CPPM and has been specially designed for the smallest applications such as micro quadcopters and in any application where a full range receiver is required.
The FM800 receiver includes a host of cables making connecting the receiver to most of todays moden flight controllers quick and easy.


Specs:
Operating Current: 50mA max
Operating Voltage: 3.6 ~8.4V
Latency: S.BUS mode:14mS @ FASST multi-channel mode, 16mS @ FASST 7ch mode
CPPM mode: 21mS @ FASST multi-channel mode, 24mS @ FASST 7ch mode
Sensitivity: Approx -90dBm
Weight: Approx 2g
Dimensions: 30 x 14 x 3mm
Output mode: S.BUS or CPPM can be selected
Number of channels: 8
Range: Approx 1km

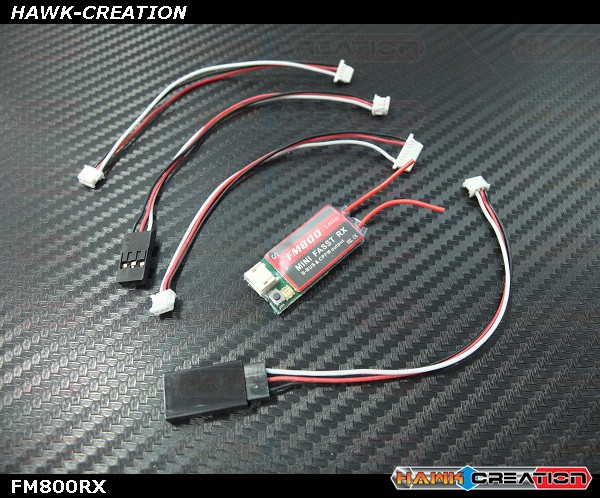

Includes:
FM800 Super Mini FAAST Compatible 8Ch Receiver
Cables

Write a review

Please login or register to review

FM800 Super Mini FASST Compatible 8ch Receiver with SBUS/CPPM

  • Brand: Hawk Creation
  • Product Code: FM800RX
  • Availability: Out Of Stock
  • $22.99


Tags: FM800RX
