FRSKY X9D-SBUS High Gain 8CH  Mirco RX for FPV Racer / Mini Quad


Description :

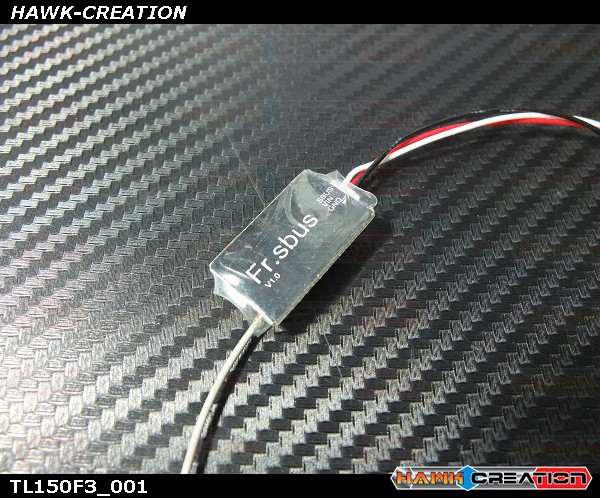

Item Name : X9D-SBUS Receiver
Channel : 8 channels
Output Signal: S.BUS
Input Voltage: 5V-7V
Working Temperature: -10 ~ 80 ℃
Size: 24*16*5mm
Weight: 3.3 g
Frequency Step:
① Click the Frsky X9D (Plus) remote control to enter the menu [MODEL SETUP];
② Click [Option] [D8], [Channel Range] to select the mode [CH1-8].
③ option [Receiver] click [Bind] press the ENT key, now the remote control to issue a "droplet" sound, the remote control to enter the transmission frequency signal state, and then press the receiver button and then power on the receiver at the moment LED red light often Press the [EXIT] button to exit the frequency mode, the sound of "Droplet" disappears, the receiver re-power on the success of the frequency of the frequency of completion
Features :
Wiring simple, small and exquisite
Only 3.3g
Compatible with Frsky X9D (Plus) remote control (D8 mode), XJT (D8 mode), and other high-frequency head.
Very suitable for small-class race through the machine-level use.

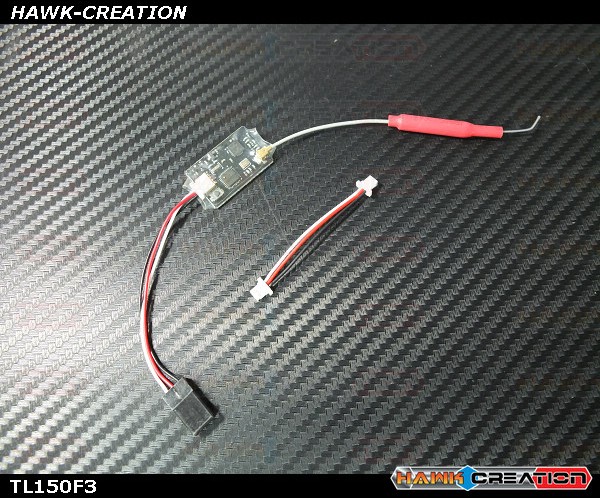

Package Included :
1 x X9D S.BUS Receiver
1 x S.BUS Common cable
1 x Flight Control Cable

Write a review

Please login or register to review

FRSKY X9D-SBUS High Gain 8CH Mirco RX for FPV Racer / Mini Quad

  • Brand: Hawk Creation
  • Product Code: TL150F3
  • Availability: In Stock
  • $17.99

Tags: TL150F3
