Stator Diameter40 mm
Stator Thickness25 mm
No. of Stator Arms12
Magnet Poles10
Motor Wind4+3 Turn Delta
Motor Wire2-Strand 1.2 mm
Motor Kv1100KV RPM/Volt
No-Load Current (IO/10v)4.19 Amps
Motor Resistance (RM)0.006 Ohms
Max Continuous Current100 Amp
Max Continuous Power2400 Watt
Weight350 Grams

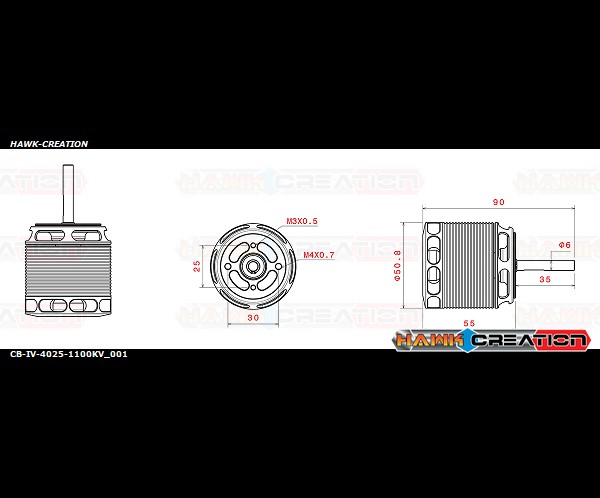

Outside Diameter50.8 mm
Shaft Diameter6 mm
Body Length54.5 mm
Overall Shaft Length90 mm
Max Lipo Cell6s
Peak Continuous Current130 Amps (5 seconds)
Peak Continuous Power2920 Watts (5 seconds)
Motor Timing5deg~12deg
Drive Frequency8kHz~32khz

Write a review

Please login or register to review

COMBOVE TYPE IV 4025-1100KV (550-600 Heli / OXY 5 / SAB 580)

  • Product Code: CB-IV-4025-1100KV
  • Availability: In Stock
  • $154.99

Tags: CB-IV-4025-1100KV
