  • DUALSKY Mini light Xcontroller V2 30A ESC 2-4s For Airplane/Heli

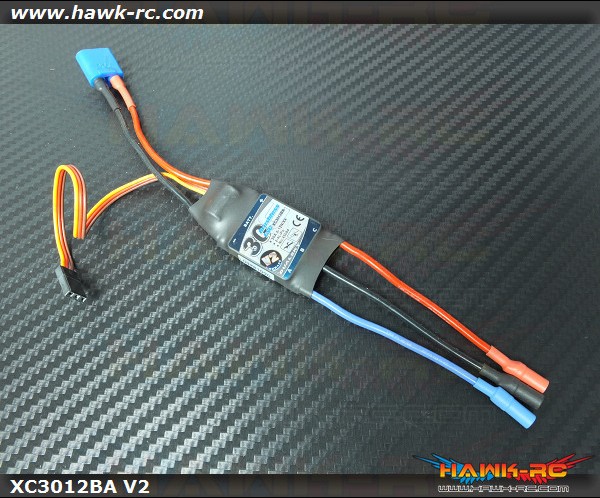

DUALSKY Mini light Xcontroller V2 30A ESC 2-4s For Airplane/Heli

Mini Xcontroller V2. XC3012BA, ESC 30A

Features:

● The new designed 2nd version software and hardware have many new features.
● Supports all motor types up to 210,000 rpm(2 Poles motors).
● Extremely low resistance, factory high quality MosFETs, for high current usage.
● Adjustable cut-off, either motor stop or reduction in power.
● DLBM on/off - Dualsky Linear Brake Mode. Brake strength can be adjusted by
   transmitter when switch on.
● Full protection features including: Low voltage cut-off, Over heating protection,
   signal loss auto cut-off.
● Normal, Soft or Super-Soft start up modes available, for both fixed wing and
   helicopter setups.
● Smooth and accurate throttle control throughout the range.
● Throttle digital signal sampling, compatible with the signal frequency of 14 ms
   Normal mode and 7 ms high-speed mode (HS Mode).
● Throttle range can be re-calibrated, so suitable for all brands of transmitter.
● Fully PC programmable when used with Dualsky USB link(#45525).
● Compatible with programming card(#45200) for easy re-programming at the field!
● Stable linear BEC power supply, support up to 3S Lipo.



Specification:

Dimensions: 47x 26x 7mm(L x W x D)
Weight: 22g
Number of Cell: NiXX 6-12, 7.2-14.4V
                         LiPo 2-4, 7.4-14.8V
Resistance(Ri)(Ohm): 0.0059
Max Cont.  Current & Max Cont.Output: 30A, 420W
Max Burst Current & Max Burst Output:  40A, 544W
BEC / Dissipative Power: 5V/2A (2W, Linear)
Programmable: Throttle + ProgCARD V2
Input Wires: 100mm, 16AWG, DC3
Output Wires: 65mm, 16AWG, DB3
Signal Wire: 180MM JR


Applications:
Small models
1M Class Aerobatic

Write a review

Please login or register to review

DUALSKY Mini light Xcontroller V2 30A ESC 2-4s For Airplane/Heli

  • Brand: DaulSky
  • Product Code: XC3012BA V2
  • Availability: In Stock
  • $28.99


Tags: XC3012BA V2
