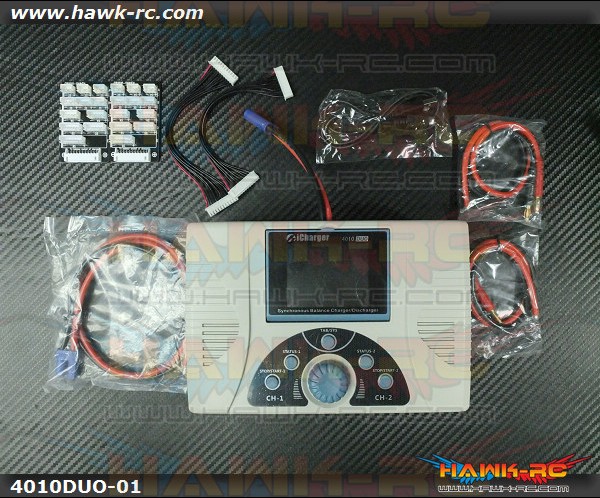

iCharger 4010 Duo Battery Charger 1400W*2
The iCharger 4010Duo. With two channels available,
each of which can charge at up to 40 amps simultaneously,
it's like having two superchargers in one.
Or combine both channels in parallel to achieve up to 70 amp charge rates!
With two JST-XH balance boards - one for each channel
Specifications
Input voltage range: 9-50V DC
Input current limit: 65A
Maximum charge power capacity: 1400W per channel @ >23.5V (up to 2000W in synchronous mode)
Charge current range: 0.05-40.0A per channel, or up to 70A in synchronous mode
Discharge power capacity: 130W per channel, or up to 200W in synchronous mode
Maximum regenerative discharge: 1400W per channel, or up to 2000W in synchronous mode
Maximum external discharge power capacity: 1600W @ 40V/40A, or up to 3200W in synchronous mode
Current drain for balancing: 1.2A per channel, or up to 2.4A in synchronous mode
Balance accuracy: 10mV
LiPo/LiIo/LiFe: 1-10 series per channel
NiCd/NiMH battery cell count: 1-25 series per channel
Pb battery cell count: 1-18 series (2-36V) per channel
PC Connectivity: USB port
Weight: 1470g
Dimensions (LxWxD): 210x140x80 mm
Warranty: 1 year (Shipping cost handle by customer)
iCharger 4010 Duo Battery Charger 1400W*2
- Brand: iCharger
- Product Code: 4010DUO
- Availability: In Stock
-
$399.00
