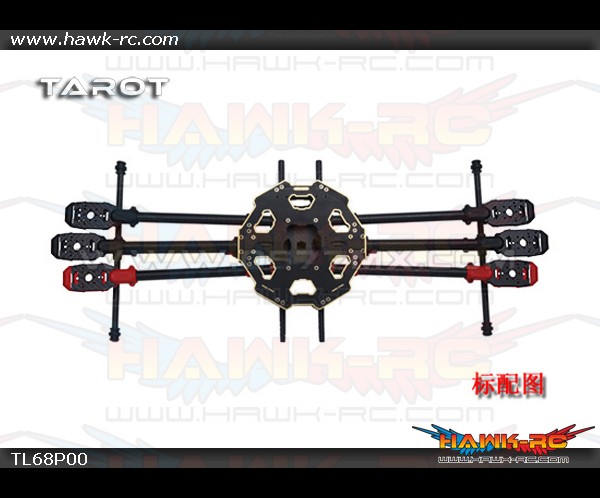

Tarot 680Pro Full-Foldable Hexacopter Carbon Frame
TAROT 680PRO Hex-copter foldable frame is advanced version of 680 series frame.
Original designed by TAROT, with lower G.C., better stability, bigger space, and eye-catchy appearance.

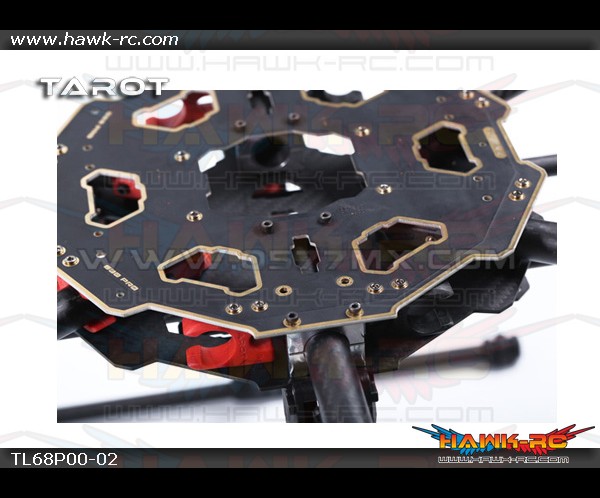

Equipped with high strength PCB, which make connection faster and safer.
Toray 3K hollow carbon fiber booms applied, CNC processed.
New 16mm CF boom foldable mount, with wider 3-point support, extended surface with carbon plate
New boom sleeve is made from reinforce nylon, fixed by M2.5 step screw.

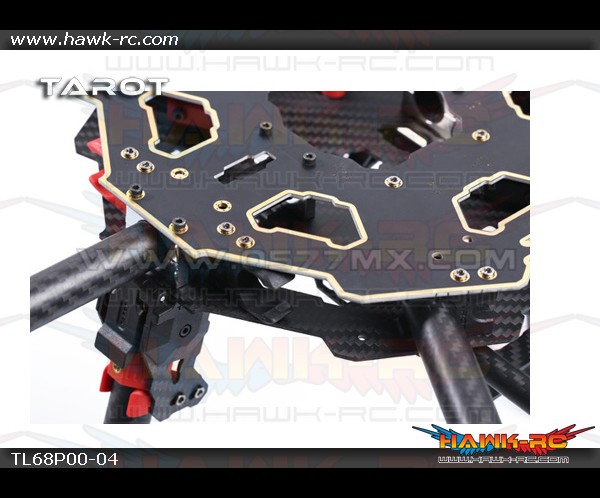

With safety lock, prevent damage of landing gear shrink.
Added brushless ESC installation hole, cable protection, and clamp design on motor mount.
With double color appearance, brings strong visual focus.
TAROT 680PRO Hex-copter foldable frame is designed for portable purpose. Suit for light capacity,
long time, and large range job, likeRC monitoring, aerial researching, measure sketching, farm developing… etc.

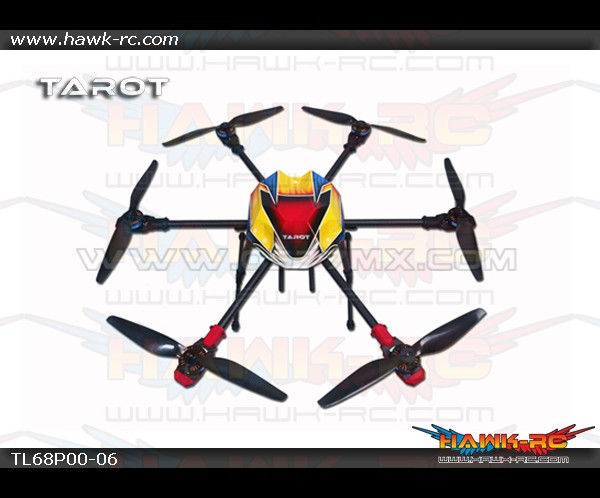

Equipped with GOPRO gimbal and wireless transportation, weight 2.76KG, hoving flight time is 14.5 minutes
Spec & recommend accessories:
Distance between axis diameter: 695MM
Propellers: 12’’~13’’ CF propellers TL2828, TL2829
Brushless Motor: 4S/620KV4006 motor TL68P02
Battery: 14.8V 4000-5000MHA
Net weight: 0.81kg
