Kylin 250FPV ARF

KYLIN engineers and test pilots spent the last year,
heavily involved in the FPV community testing new equipment around the world,
in order to bring you the most highly integrated competition grade FPV,
all in one machine from KDS.
KYLIN 250 FPV Racer! Get Ready!


Key Features
Pre-Assembled in (ARF) Almost Ready to Fly and (RTF) Ready to Fly configurations

Multi-layer carbon fiber airframe keeps things light,
while providing the strength racers demand and allowing quick change of components

Integrated electronics all combined on a PCB with a modular design
(CC3D, OSD, & PMU with ESC's on a seperate quick change module)

The battery position is right on the CG creating balanced,
and precise flight characteristics in all flight orientations

Nuts and washers have been replaced by inserts keeping parts count low,
and making maintenance or repairs simple

High efficiency 20 amp ESC specially designed for FPV racing,
and matched perfectly to perform with the high performance KYLIN motors

2204-2300 KV (CW & CCW) competition grade brushless motors,
with high performance stators and magnets create amazing power,
and efficiency to meet the demands of todays FPV racer

800 TVL HD video camera with 600mw 5.8G 32ch video transmitter,
provide you with a clear image and reliable link to your FPV goggles or monitor

Adjustable camera mount makes changing the view angle easy,
so you can quickly tune the machine to your flying style or environment
Battery tray accomodates many common sizes: 3s 1300-2200 and 4s 1050-1800


KYLIN 250 frame with 5" Propellers
280 arms with 6" Propellers included FREE
4 x High Efficiency 20 amp ESC's on secondary PCB
2 x 2204-2300 KV (CW) Competition Brushless Motors
2 x 2204-2300 KV (CCW) Competition Brushless Motors

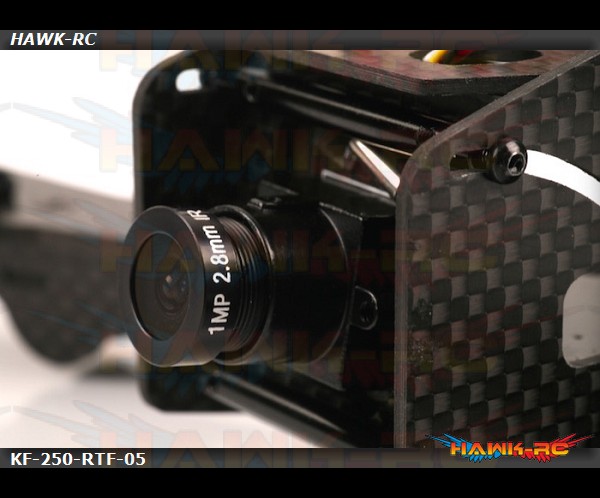

800 TVL HD camera on adjustable mount
600mw 5.8G 32ch Video Transmitter with Antenna

Require to fly:

Radio Transmitter
Radio Receiver
Battery: 3s 1300-2200mAh or 4s 1050-1800mAh
FPV monitor or FPV goggles (optional)

****Lipo Battery NOT INCLUDING****

Write a review

Please login or register to review


  • Brand: KDS
  • Product Code: KF-250-01
  • Availability: In Stock
  • $149.99

Tags: KF-250-01
